Glass Liquid Separator는 분액깔때기·분별깔때기·액액깔때기 등으로 명명되며, 주로 두 종류의 액상을 교반 과정을 거쳐 분할 및 별도 추출하기 위한 목적으로 사용되는 유리 기구입니다.
프로넥스텍에서는 10 ~ 50L의 대용량 Glass Liquid Separator를 판매하고 있으며, 원활한 층분리를 위해 교반기를 장착하여 공급해 드리고 있습니다.
▷ Application : liquid-liquid, liquid-solid extractor, reaction experiments, plant extraction industry, pharmaceutical development...
이번 포스팅에서는 기본 제품 정보와 함께 좀 더 편리하고 안전한 방식의 liquid feeding을 위해 진공펌프를 이용한 사용법에 대해 안내드리고자 합니다. 많은 관심 부탁드립니다.
Classification of Products
- Capacity : 10L, 20L, 30L, 50L
- Material: GG17 high borosilicate glass
- PTFE Coated Impeller, Overhead stirrer
- Four Ports : Stirrer Port, Vacuum Port, Liquid Feeding Port, Bottom Discharging Port

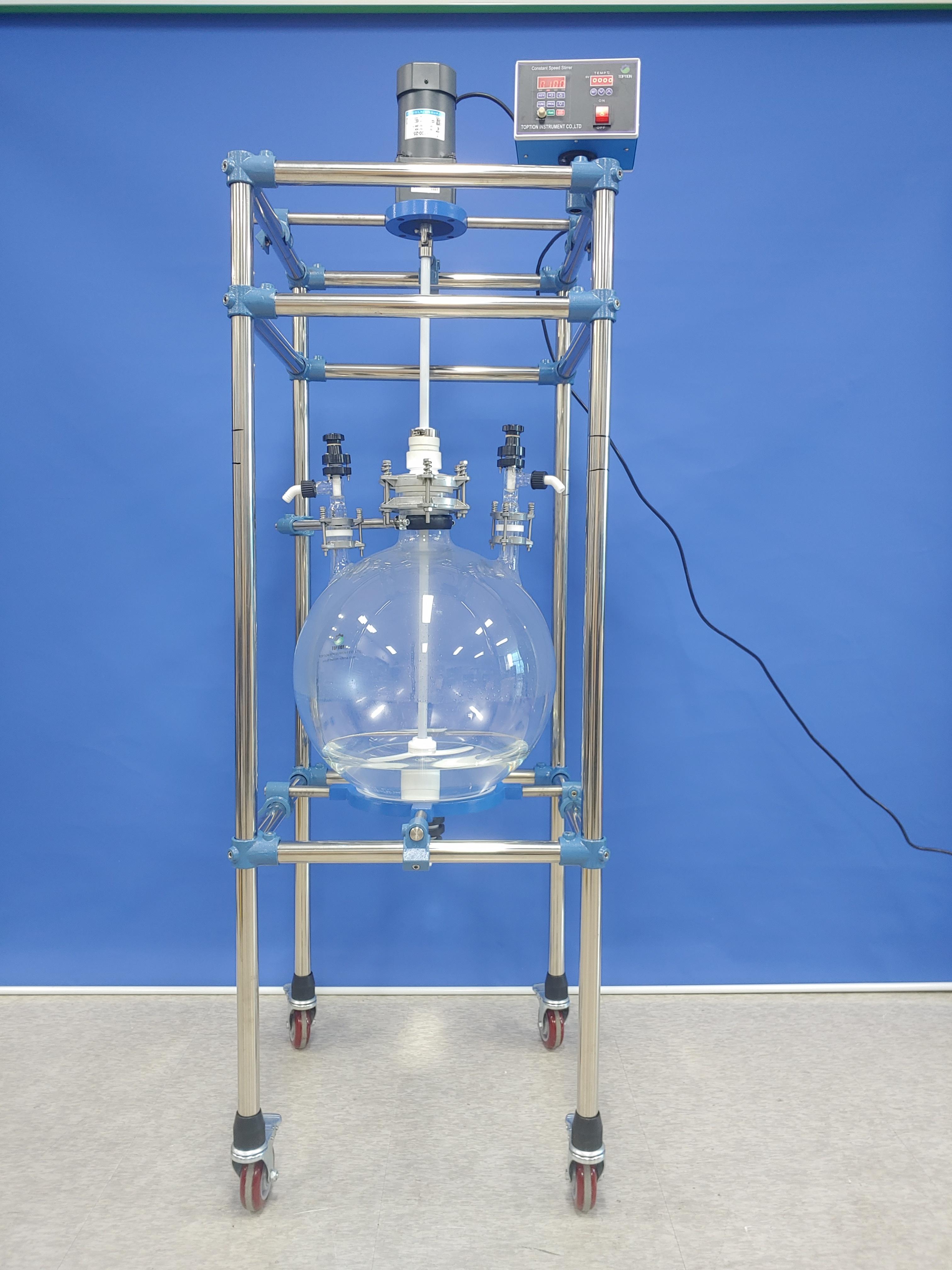

50L Glass LIquid Separator

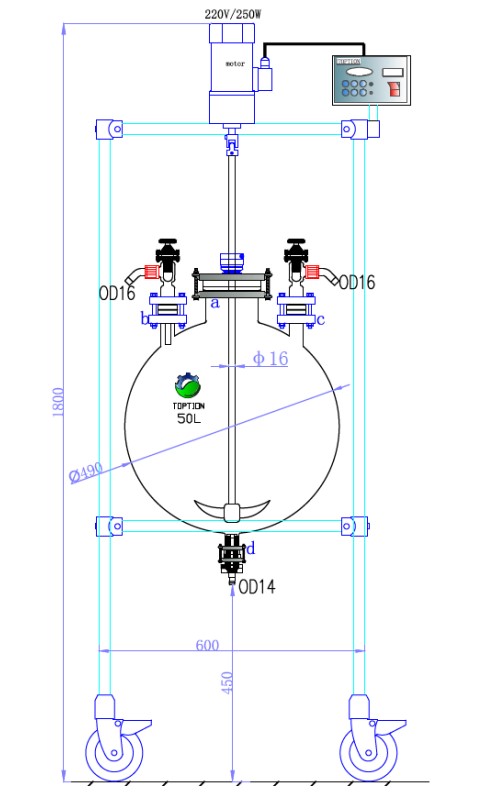

[Drawing]
[Details]
PTFE Coated anchor type Impeller
Mechanical Seal
Bottom Discharging Port

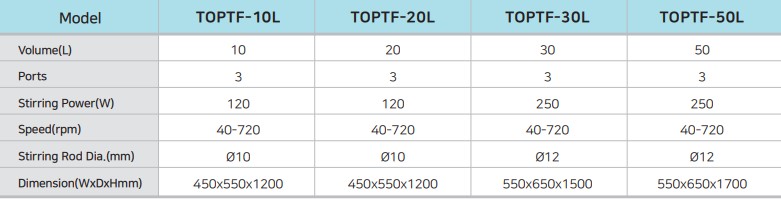

[Specifications]
[Short movie]
진공펌프를 이용한 액상 피딩 및 스터링, 디스차징 운영에 대한 영상입니다
